Imaging Demo#
How to create visibility from pixel data and make images.
The example uses stixpy to obtain STIX pixel data and convert these into visibilities and xrayvisim
to make the images.
Imports
import logging
import astropy.units as u
import matplotlib.pyplot as plt
import numpy as np
from astropy.coordinates import SkyCoord
from sunpy.coordinates import HeliographicStonyhurst, Helioprojective
from sunpy.map import Map, make_fitswcs_header
from sunpy.time import TimeRange
from xrayvision.clean import vis_clean
from xrayvision.imaging import vis_to_image, vis_to_map
from xrayvision.mem import mem, resistant_mean
from stixpy.calibration.visibility import calibrate_visibility, create_meta_pixels, create_visibility
from stixpy.coordinates.frames import STIXImaging
from stixpy.coordinates.transforms import get_hpc_info
from stixpy.imaging.em import em
from stixpy.map.stix import STIXMap # noqa
from stixpy.product import Product
logger = logging.getLogger(__name__)
Read science file as Product
cpd_sci = Product(
"http://pub099.cs.technik.fhnw.ch/fits/L1/2021/09/23/SCI/solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits"
)
cpd_sci
Files Downloaded: 0%| | 0/1 [00:00<?, ?file/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 0%| | 0.00/48.4M [00:00<?, ?B/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 0%| | 1.02k/48.4M [00:00<6:07:17, 2.20kB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 0%| | 32.7k/48.4M [00:00<10:58, 73.5kB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 0%| | 137k/48.4M [00:00<02:41, 298kB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 1%| | 417k/48.4M [00:00<00:53, 895kB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 2%|▏ | 929k/48.4M [00:00<00:24, 1.91MB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 4%|▍ | 1.97M/48.4M [00:01<00:11, 3.97MB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 8%|▊ | 4.06M/48.4M [00:01<00:05, 8.12MB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 16%|█▌ | 7.85M/48.4M [00:01<00:02, 15.4MB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 32%|███▏ | 15.7M/48.4M [00:01<00:01, 30.9MB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 51%|█████ | 24.8M/48.4M [00:01<00:00, 45.3MB/s]
solo_L1_stix-sci-xray-cpd_20210923T152015-20210923T152639_V02_2109230030-62447.fits: 82%|████████▏ | 39.9M/48.4M [00:01<00:00, 71.0MB/s]
Files Downloaded: 100%|██████████| 1/1 [00:02<00:00, 2.47s/file]
Files Downloaded: 100%|██████████| 1/1 [00:02<00:00, 2.47s/file]
CompressedPixelData <sunpy.time.timerange.TimeRange object at 0x7949a3a43610>
Start: 2021-09-23 15:20:15
End: 2021-09-23 15:26:39
Center:2021-09-23 15:23:27
Duration:0.004439814814814813 days or
0.10655555555555551 hours or
6.393333333333331 minutes or
383.59999999999985 seconds
DetectorMasks
[0...697]: [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]
PixelMasks
[0...697]: [['1' '1' '1' '1' '1' '1' '1' '1' '1' '1' '1' '1']]
EnergyEdgeMasks
[0]: [_,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,_]
Read background file as Product
cpd_bkg = Product(
"http://pub099.cs.technik.fhnw.ch/fits/L1/2021/09/23/SCI/solo_L1_stix-sci-xray-cpd_20210923T095923-20210923T113523_V02_2109230083-57078.fits"
)
cpd_bkg
Files Downloaded: 0%| | 0/1 [00:00<?, ?file/s]
solo_L1_stix-sci-xray-cpd_20210923T095923-20210923T113523_V02_2109230083-57078.fits: 0%| | 0.00/121k [00:00<?, ?B/s]
solo_L1_stix-sci-xray-cpd_20210923T095923-20210923T113523_V02_2109230083-57078.fits: 1%| | 1.02k/121k [00:00<00:52, 2.30kB/s]
solo_L1_stix-sci-xray-cpd_20210923T095923-20210923T113523_V02_2109230083-57078.fits: 7%|▋ | 8.95k/121k [00:00<00:05, 20.6kB/s]
solo_L1_stix-sci-xray-cpd_20210923T095923-20210923T113523_V02_2109230083-57078.fits: 47%|████▋ | 56.9k/121k [00:00<00:00, 132kB/s]
Files Downloaded: 100%|██████████| 1/1 [00:01<00:00, 1.50s/file]
Files Downloaded: 100%|██████████| 1/1 [00:01<00:00, 1.50s/file]
CompressedPixelData <sunpy.time.timerange.TimeRange object at 0x7949a3e9a250>
Start: 2021-09-23 09:59:23
End: 2021-09-23 11:35:23
Center:2021-09-23 10:47:23
Duration:0.06666666666666665 days or
1.5999999999999996 hours or
95.99999999999997 minutes or
5759.999999999999 seconds
DetectorMasks
[0]: [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]
PixelMasks
[0]: [['1' '1' '1' '1' '1' '1' '1' '1' '1' '1' '1' '1']]
EnergyEdgeMasks
[0]: [_,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32]
Set time and energy ranges which will be considered for the science and the background file
time_range_sci = ["2021-09-23T15:20:00", "2021-09-23T15:23:00"]
time_range_bkg = [
"2021-09-23T09:00:00",
"2021-09-23T12:00:00",
] # Set this range larger than the actual observation time
energy_range = [25, 28] * u.keV
Create the meta pixel, A, B, C, D for the science and the background data
meta_pixels_sci = create_meta_pixels(
cpd_sci, time_range=time_range_sci, energy_range=energy_range, flare_location=[0, 0] * u.arcsec, no_shadowing=True
)
meta_pixels_bkg = create_meta_pixels(
cpd_bkg, time_range=time_range_bkg, energy_range=energy_range, flare_location=[0, 0] * u.arcsec, no_shadowing=True
)
Perform background subtraction
meta_pixels_bkg_subtracted = {
**meta_pixels_sci,
"abcd_rate_kev_cm": meta_pixels_sci["abcd_rate_kev_cm"] - meta_pixels_bkg["abcd_rate_kev_cm"],
"abcd_rate_error_kev_cm": np.sqrt(
meta_pixels_sci["abcd_rate_error_kev_cm"] ** 2 + meta_pixels_bkg["abcd_rate_error_kev_cm"] ** 2
),
}
Create visibilities from the meta pixels
vis = create_visibility(meta_pixels_bkg_subtracted)
Obtain the necessary ephemeris data create HPC 0,0 coordinate
vis_tr = TimeRange(vis.meta["time_range"])
roll, solo_xyz, pointing = get_hpc_info(vis_tr.start, vis_tr.end)
solo = HeliographicStonyhurst(*solo_xyz, obstime=vis_tr.center, representation_type="cartesian")
center_hpc = SkyCoord(0 * u.deg, 0 * u.deg, frame=Helioprojective(obstime=vis_tr.center, observer=solo))
Files Downloaded: 0%| | 0/1 [00:00<?, ?file/s]
solo_ANC_stix-asp-ephemeris_20210923_V02.fits: 0%| | 0.00/397k [00:00<?, ?B/s]
solo_ANC_stix-asp-ephemeris_20210923_V02.fits: 0%| | 1.02k/397k [00:00<00:43, 9.12kB/s]
solo_ANC_stix-asp-ephemeris_20210923_V02.fits: 2%|▏ | 8.95k/397k [00:00<00:08, 45.9kB/s]
solo_ANC_stix-asp-ephemeris_20210923_V02.fits: 10%|█ | 40.9k/397k [00:00<00:02, 158kB/s]
solo_ANC_stix-asp-ephemeris_20210923_V02.fits: 28%|██▊ | 112k/397k [00:00<00:00, 355kB/s]
solo_ANC_stix-asp-ephemeris_20210923_V02.fits: 52%|█████▏ | 208k/397k [00:00<00:00, 546kB/s]
Files Downloaded: 100%|██████████| 1/1 [00:00<00:00, 1.09file/s]
Files Downloaded: 100%|██████████| 1/1 [00:00<00:00, 1.09file/s]
Calibrate the visibilities
If not given will default to sun center flare location
cal_vis = calibrate_visibility(vis, flare_location=center_hpc)
Files Downloaded: 0%| | 0/1 [00:00<?, ?file/s]
Files Downloaded: 100%|██████████| 1/1 [00:00<00:00, 2.86file/s]
Files Downloaded: 100%|██████████| 1/1 [00:00<00:00, 2.86file/s]
Selected detectors 10 to 7
# order by sub-collimator e.g. 10a, 10b, 10c, 9a, 9b, 9c ....
isc_10_7 = [3, 20, 22, 16, 14, 32, 21, 26, 4, 24, 8, 28]
idx = np.argwhere(np.isin(cal_vis.meta["isc"], isc_10_7)).ravel()
Slice the visibilities to detectors 10 - 7
vis10_7 = cal_vis[idx]
Set up image parameters
imsize = [512, 512] * u.pixel # number of pixels of the map to reconstruct
pixel = [10, 10] * u.arcsec / u.pixel # pixel size in arcsec
Make a full disk back projection (inverse transform) map
bp_image = vis_to_image(vis10_7, imsize, pixel_size=pixel)
Obtain the necessary ephemeris data
vis_tr = TimeRange(vis.meta["time_range"])
roll, solo_xyz, pointing = get_hpc_info(vis_tr.start, vis_tr.end)
solo = HeliographicStonyhurst(*solo_xyz, obstime=vis_tr.center, representation_type="cartesian")
coord_stix = center_hpc.transform_to(STIXImaging(obstime=vis_tr.start, obstime_end=vis_tr.end, observer=solo))
header = make_fitswcs_header(
bp_image, coord_stix, telescope="STIX", observatory="Solar Orbiter", scale=[10, 10] * u.arcsec / u.pix
)
fd_bp_map = Map((bp_image, header))
Convert the coordinates and make a map in Helioprojective and rotate so “North” is “up” Center of STIX pointing in HPC
header_hp = make_fitswcs_header(
bp_image, center_hpc, scale=[10, 10] * u.arcsec / u.pix, rotation_angle=90 * u.deg + roll
)
hp_map = Map((bp_image, header_hp))
hp_map_rotated = hp_map.rotate()

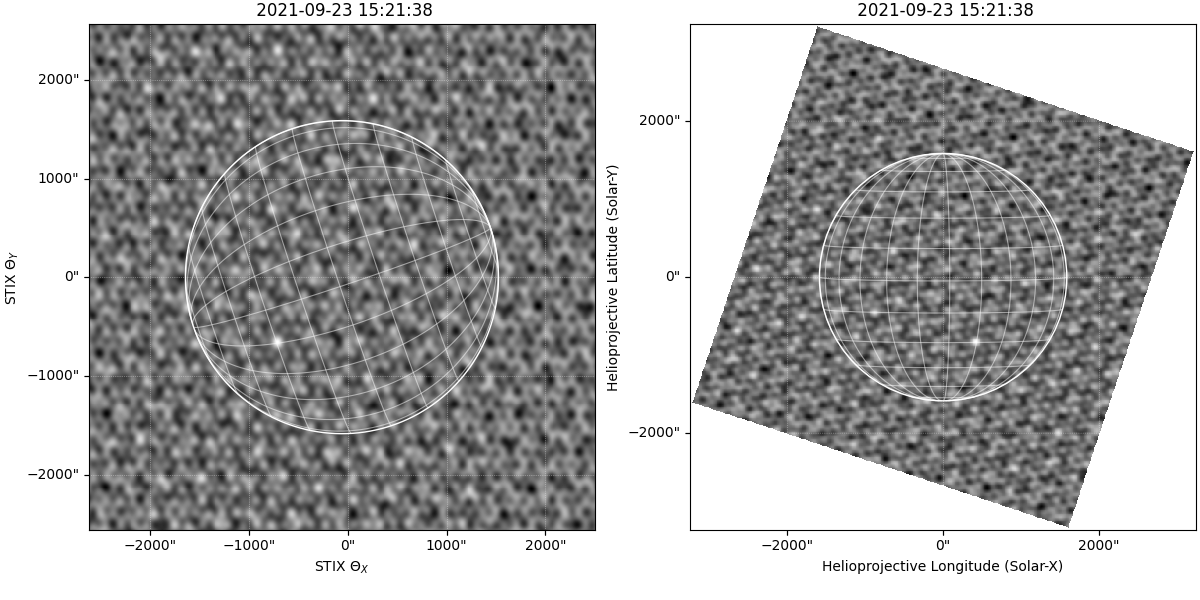

Plot the both maps
fig = plt.figure(layout="constrained", figsize=(12, 6))
ax = fig.subplot_mosaic(
[["stix", "hpc"]], per_subplot_kw={"stix": {"projection": fd_bp_map}, "hpc": {"projection": hp_map_rotated}}
)
fd_bp_map.plot(axes=ax["stix"])
fd_bp_map.draw_limb()
fd_bp_map.draw_grid()
hp_map_rotated.plot(axes=ax["hpc"])
hp_map_rotated.draw_limb()
hp_map_rotated.draw_grid()
<CoordinatesMap with 2 world coordinates:
index aliases type unit wrap format_unit visible
----- ------- --------- ---- --------- ----------- -------
0 lon longitude deg 180.0 deg deg yes
1 lat latitude deg None deg yes
>
Estimate the flare location and plot on top of back projection map. Note the coordinates are automatically converted from the STIXImaging to Helioprojective
max_pixel = np.argwhere(fd_bp_map.data == fd_bp_map.data.max()).ravel() * u.pixel
# because WCS axes and array are reversed
max_stix = fd_bp_map.pixel_to_world(max_pixel[1], max_pixel[0])
ax["stix"].plot_coord(max_stix, marker=".", markersize=50, fillstyle="none", color="r", markeredgewidth=2)
ax["hpc"].plot_coord(max_stix, marker=".", markersize=50, fillstyle="none", color="r", markeredgewidth=2)
fig.tight_layout()
/home/docs/checkouts/readthedocs.org/user_builds/stixpy/checkouts/209/examples/imaging_demo.py:174: UserWarning: The figure layout has changed to tight
fig.tight_layout()
Use estimated flare location to create more accurate visibilities
meta_pixels_sci = create_meta_pixels(
cpd_sci, time_range=time_range_sci, energy_range=energy_range, flare_location=max_stix, no_shadowing=True
)
meta_pixels_bkg_subtracted = {
**meta_pixels_sci,
"abcd_rate_kev_cm": meta_pixels_sci["abcd_rate_kev_cm"] - meta_pixels_bkg["abcd_rate_kev_cm"],
"abcd_rate_error_kev_cm": np.sqrt(
meta_pixels_sci["abcd_rate_error_kev_cm"] ** 2 + meta_pixels_bkg["abcd_rate_error_kev_cm"] ** 2
),
}
vis = create_visibility(meta_pixels_bkg_subtracted)
cal_vis = calibrate_visibility(vis, flare_location=max_stix)
Selected detectors 10 to 3 order by sub-collimator e.g. 10a, 10b, 10c, 9a, 9b, 9c ….
isc_10_3 = [3, 20, 22, 16, 14, 32, 21, 26, 4, 24, 8, 28, 15, 27, 31, 6, 30, 2, 25, 5, 23, 7, 29, 1]
idx = np.argwhere(np.isin(cal_vis.meta["isc"], isc_10_3)).ravel()
Create an xrayvsion visibility object
cal_vis.meta["offset"] = max_stix
vis10_3 = cal_vis[idx]
Set up image parameters
imsize = [129, 129] * u.pixel # number of pixels of the map to reconstruct
pixel = [2, 2] * u.arcsec / u.pixel # pixel size in arcsec
Create a back projection image with natural weighting
bp_nat = vis_to_image(vis10_3, imsize, pixel_size=pixel)
Create a back projection image with uniform weighting
bp_uni = vis_to_image(vis10_3, imsize, pixel_size=pixel, scheme="uniform")
Create a sunpy.map.Map with back projection
bp_map = vis_to_map(vis10_3, imsize, pixel_size=pixel)
Crete a clean image using the clean algorithm vis_clean
niter = 200 # number of iterations
gain = 0.1 # gain used in each clean iteration
beam_width = 20.0 * u.arcsec
clean_map, model_map, resid_map = vis_clean(
vis10_3, imsize, pixel_size=pixel, gain=gain, niter=niter, clean_beam_width=20 * u.arcsec
)
2026-01-28T17:38:08Z INFO xrayvision.clean 124: Iter: 0, strength: 1.9311863170342085, location: (np.int64(62), np.int64(66))
2026-01-28T17:38:08Z INFO xrayvision.clean 124: Iter: 25, strength: 0.4818291259500767, location: (np.int64(84), np.int64(48))
2026-01-28T17:38:08Z INFO xrayvision.clean 145: Largest residual negative
Create a sunpy map for the clean image in Helioprojective
header = make_fitswcs_header(
clean_map.data,
max_stix.transform_to(Helioprojective(obstime=vis_tr.center, observer=solo)),
telescope="STIX",
observatory="Solar Orbiter",
scale=pixel,
rotation_angle=90 * u.deg + roll,
)

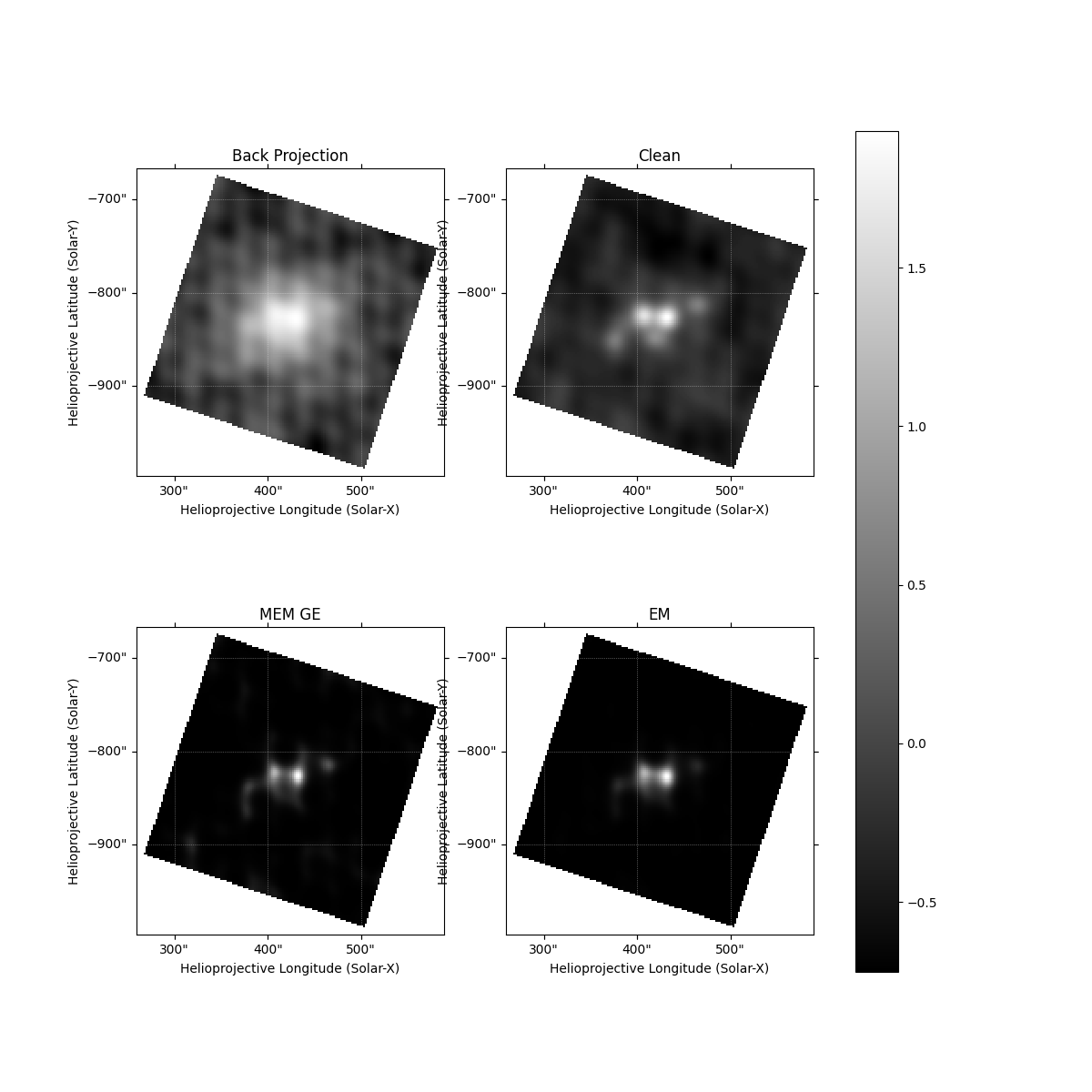

Crete a map using the MEM GE algorithm mem
snr_value, _ = resistant_mean((np.abs(vis10_3.visibilities) / vis10_3.amplitude_uncertainty).flatten(), 3)
percent_lambda = 2 / (snr_value**2 + 90)
mem_map = mem(vis10_3, shape=imsize, pixel_size=pixel, percent_lambda=percent_lambda)
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 0, Chi2: 234.3644777183099
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 25, Chi2: 23.49459412239177
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 50, Chi2: 18.576285880053675
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 75, Chi2: 16.5189804086438
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 100, Chi2: 15.303427427222758
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 125, Chi2: 14.528204741189544
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 150, Chi2: 13.992367150817094
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 175, Chi2: 13.61632070888609
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 200, Chi2: 13.336933875767922
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 225, Chi2: 13.116082735499745
2026-01-28T17:38:10Z INFO xrayvision.mem 159: Iter: 250, Chi2: 12.930022572631668
2026-01-28T17:38:10Z INFO xrayvision.mem 510: Iter: 0, Obj function: (241.24949821906276+0j)
2026-01-28T17:38:12Z INFO xrayvision.mem 510: Iter: 25, Obj function: (29.468841693198318+0j)
2026-01-28T17:38:14Z INFO xrayvision.mem 510: Iter: 50, Obj function: (28.679569370220314+0j)
2026-01-28T17:38:16Z INFO xrayvision.mem 510: Iter: 75, Obj function: (28.606898703701226+0j)
2026-01-28T17:38:19Z INFO xrayvision.mem 510: Iter: 100, Obj function: (28.598019598996785+0j)
Crete a map using the EM algorithm EM
em_map = em(
meta_pixels_bkg_subtracted["abcd_rate_kev_cm"],
cal_vis,
shape=imsize,
pixel_size=pixel,
flare_location=max_stix,
idx=idx,
)
clean_map = Map((clean_map.data, header)).rotate()
bp_map = Map((bp_nat, header)).rotate()
mem_map = Map((mem_map.data, header)).rotate()
em_map = Map((em_map, header)).rotate()
vmax = max([clean_map.data.max(), mem_map.data.max(), em_map.data.max()])
2026-01-28T17:38:21Z INFO stixpy.imaging.em 180: Iteration: 25, StdDeV: 0.13934706488123141, C-stat: 0.08514307890282385
2026-01-28T17:38:21Z INFO stixpy.imaging.em 180: Iteration: 50, StdDeV: 0.03072493391043797, C-stat: 0.05479448704103872
2026-01-28T17:38:21Z INFO stixpy.imaging.em 180: Iteration: 75, StdDeV: 0.0059690156984681594, C-stat: 0.045450543910084615
2026-01-28T17:38:21Z INFO stixpy.imaging.em 180: Iteration: 100, StdDeV: 0.0017602673077311253, C-stat: 0.042474557084790567
2026-01-28T17:38:21Z INFO stixpy.imaging.em 180: Iteration: 125, StdDeV: 0.0007918833025777353, C-stat: 0.04111451622144233
Finally compare the images from each algorithm
fig = plt.figure(figsize=(12, 12))
ax = fig.subplot_mosaic(
[
["bp", "clean"],
["mem", "em"],
],
subplot_kw={"projection": clean_map},
)
a = bp_map.plot(axes=ax["bp"])
ax["bp"].set_title("Back Projection")
b = clean_map.plot(axes=ax["clean"])
ax["clean"].set_title("Clean")
c = mem_map.plot(axes=ax["mem"])
ax["mem"].set_title("MEM GE")
d = em_map.plot(axes=ax["em"])
ax["em"].set_title("EM")
fig.colorbar(a, ax=ax.values())
plt.show()
Total running time of the script: (0 minutes 25.296 seconds)
